PICOPROBE®

Model 90

60 to 90 GHz / WR-12 waveguide input

Overview

The PICOPROBE MODEL 90, a high performance microwave probe which incorporates a WR-12 waveguide with our patented coaxial design techniques, has inherent low loss and low dispersion characteristics.

Like all of our Picoprobe microwave probes, the Model 90 features: individually spring loaded Beryllium-Copper tips which provide reliable contacts even when probing non-planar structures; direct viewing of probe tips for accurate positioning; and can be designed to almost any pitch and footprint. Smaller pitches (50-450 microns) and Ground-Signal-Ground footprints are recommended for optimum performance.

Please contact our office for additional information regarding the performance specifications of the Model 90 Picoprobe.

Features

Durable
60 to 90 GHz
Insertion Loss 1.5 db max. (60-90 GHz)
Return Loss 15 db max. (60-90 GHz)
Measurement Repeatability -50 db
Patented Coaxial Design
Individually Spring-loaded Contacts
Bias-T Option and 56-94 GHz Option Available

Downloads

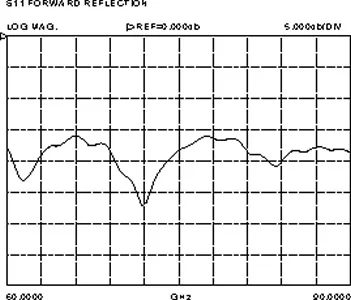

Typical uncalibrated performance of a Model 90-GSG-150-BT while touching a 50 ohm load on our CS-5 Calibration Substrate

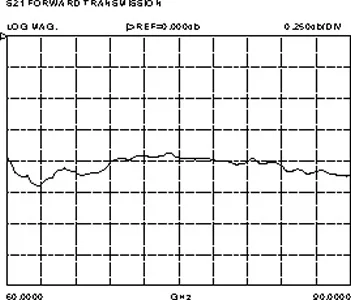

Typical insertion loss of a Model 90-GSG-150-BT.

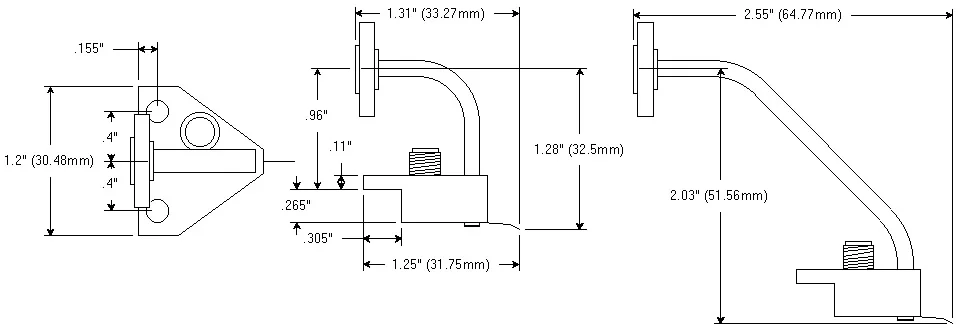

Model 90-BT Waveguide Dimensions

Model 90-BT-M Waveguide Dimensions
