Product Listings

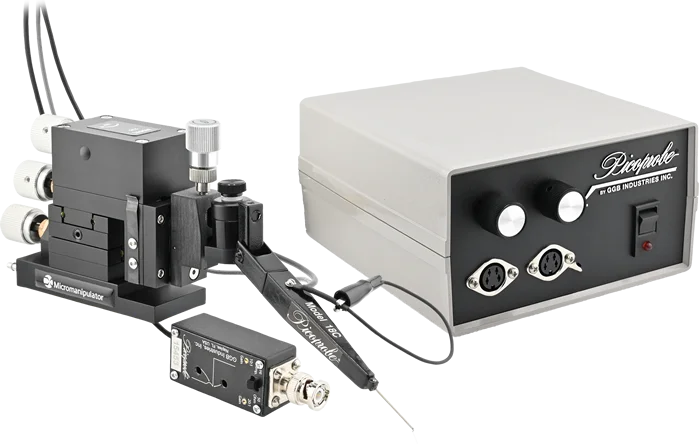

Picoprobe® High Impedance Active Probes:

1 Model 7 and Model 7A (dc to 500 Mhz, 50 ohm)
2 Model 12C (dc to 500 Mhz, 1 Megohm/0.1pF)
3 Model 34A (dc to 3.0 GHz, 10 Megohm/0.1pF)
4 Model 35 (dc to 26.0 GHz, 1.25 Megohm/0.05pF)
5 Model 18C and Model 19C (dc to 350 Mhz, 10 femtoamps/0.04pF)
6 Model 28 and Model 29 (dc to 1 Ghz, 10 femtoamps/0.04pF)

Microwave Testing:

7 Model 10 (dc to 11 GHz )

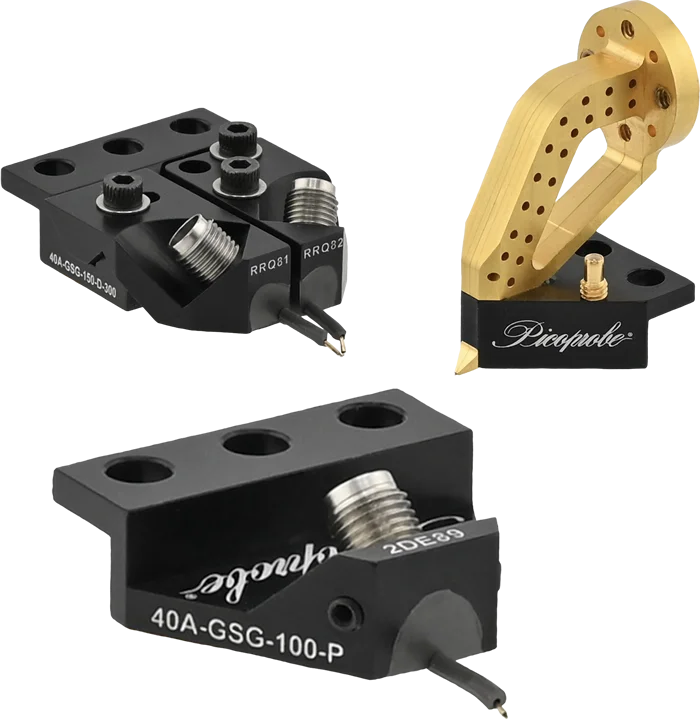

8 Model 40A (dc to 40 GHz / 2.9mm K connector input) w/ nickel alloy contacts for probing aluminum pads
9 Dual / Differential Microwave Probe (two microwave probes on one positioner – 40A, 50A, 67A, or 110H)
10 Model 40M (ultra low loss – dc to 40 GHz)
11 Model 50A (dc to 50 GHz / 2.4 mm connector input)
12 Model 67A (dc to 67 GHz / 1.85 mm V connector input)
13 Model 110H (dc to 110 GHz / 1.0 mm connector input)
14 Integrated Balun Probes

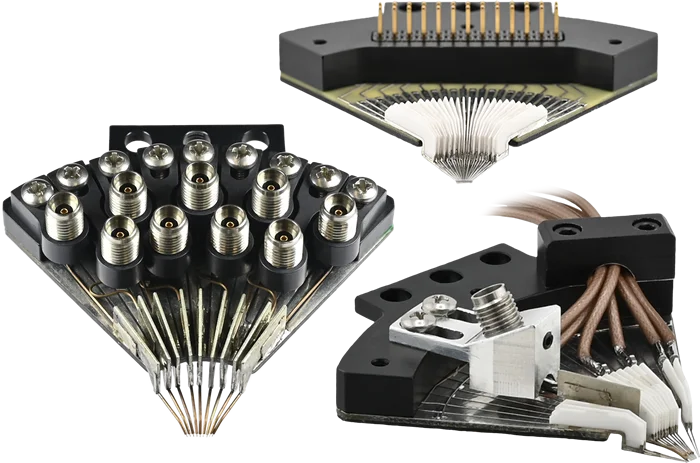

15 Multi-Contact Wedge (combines multiple RF and DC contacts – dc to 40, 50, 67 or 110 GHz)
16 Probe Cards (surrounds a circuit with high-density RF and DC contacts – dc to 40, 50, 67 or 110 GHz)
17 Model 50 (33 – 50 GHz / WR-22 waveguide input)
18 Model 75 (50 to 75 GHz / WR-15 waveguide input)
19 Model 90 (60 to 90 GHz / WR-12 waveguide input)
20 Model 120 (75 to 110 GHz / WR-10 waveguide input)
21 Model 140 (90 to 140 GHz / WR-8 waveguide input)
22 Model 170 (110 to 170 GHz / WR-6 waveguide input)
23 Model 220 (140 to 220 GHz / WR-5 waveguide input)
24 Model 325B (220 to 325 GHz / WR-3 waveguide input)
25 Model 500B (325 to 500 GHz / WR-2.2 waveguide input)
26 Model 1100B (750 to 1100 GHz / WR-1.0 waveguide input)
27 Calibration Substrates (for probe tip calibration – available in 9 standard models)
28 Differential Calibration Substrates (for two, three or four port probe tip calibrations)

DC Disposable Probe Tips:

29 T-4 Series Tungsten Probe Tips (A small diameter Tungsten wire attached to a larger wire body)
30 ST-Series Solid Tungsten Probe Tips (A large diameter solid Tungsten shaft precision tapered to a durable point)
